Code Style Guideline

To maintain code quality and consistency across the project, we follow a set of coding standards and guidelines. This page explains how we enforce coding standards using Checkstyle with the modified Google Java Style configuration based on the project needs.

Checkstyle

Checkstyle is a static code analysis tool used to ensure compliance with a defined coding style. We use it to enforce the Google Java Style Guide with some project-specific modifications.

Why Use Checkstyle?

  • Ensures consistent coding style across the project.
  • Helps maintain readability and maintainability.
  • Prevents bad practices and enforces formatting rules.

How Checkstyle Works

Checkstyle enforces coding rules defined in an XML configuration file. It scans the source code and generates a report highlighting any violations of the defined rules. You can run Checkstyle from the command line or use the IntelliJ IDEA plugin to check your code.

Example checkstyle.xml rule snippet:

<module name="JavadocMethod">
    <property name="accessModifiers" value="public"/>
    <property name="allowMissingParamTags" value="true"/>
    <property name="allowMissingReturnTag" value="true"/>
    <property name="allowedAnnotations" value="Override, Test"/>
    <property name="tokens" value="METHOD_DEF, CTOR_DEF, ANNOTATION_FIELD_DEF"/>
</module>

This Checkstyle configuration enforces Javadoc for public methods while allowing missing @param and @return tags. It also skips methods annotated with @Override and @Test from Javadoc checks.

We've modified the Google Java Style Guide to suit our project needs. You can find the project-specific Checkstyle rules in the checkstyle.xml file.

Setting Up IntelliJ IDEA

There are two parts of the setup, firstly you need to install the CheckStyle-IDEA plugin and then configure it to use the project-specific Checkstyle configuration(checkstyle.xml) given inside backend directory. This will allow IntelliJ IDEA to highlight any code that doesn't comply with the Checkstyle rules. And then you need to configure the code style settings in intellij to match the Checkstyle rules. For consistency, we've provided the project-specific code style settings in the oakcan-code-style.xml file inside the .idea directory.

Installing and Using CheckStyle-IDEA Plugin

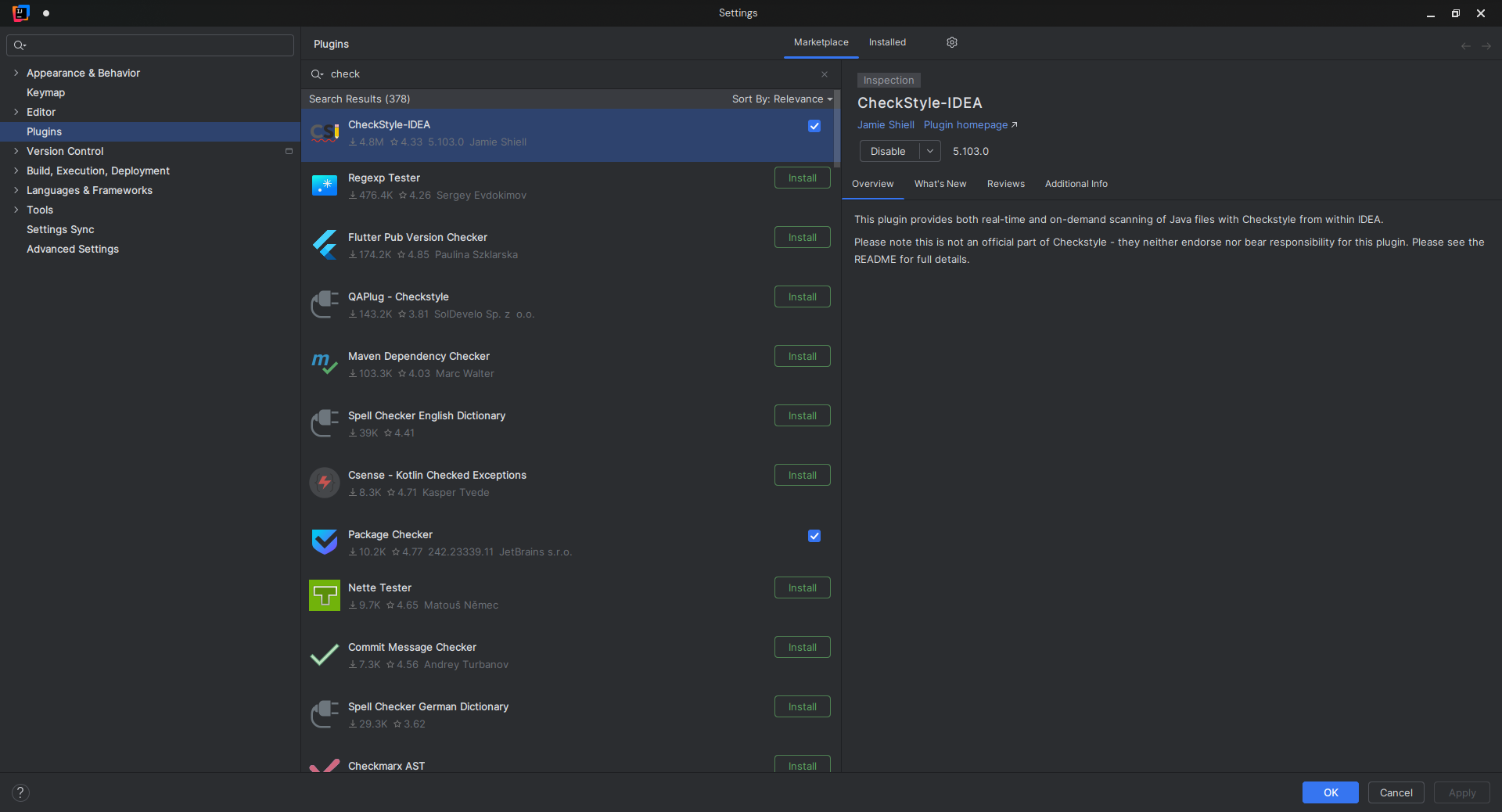

  1. Install Checkstyle Plugin: Preferences > Plugins > Search Checkstyle > Install CheckStyle-IDEA. checkstyle-idea.png
  2. Restart IntelliJ IDEA.
  3. Go to Preferences > Tools > Checkstyle.

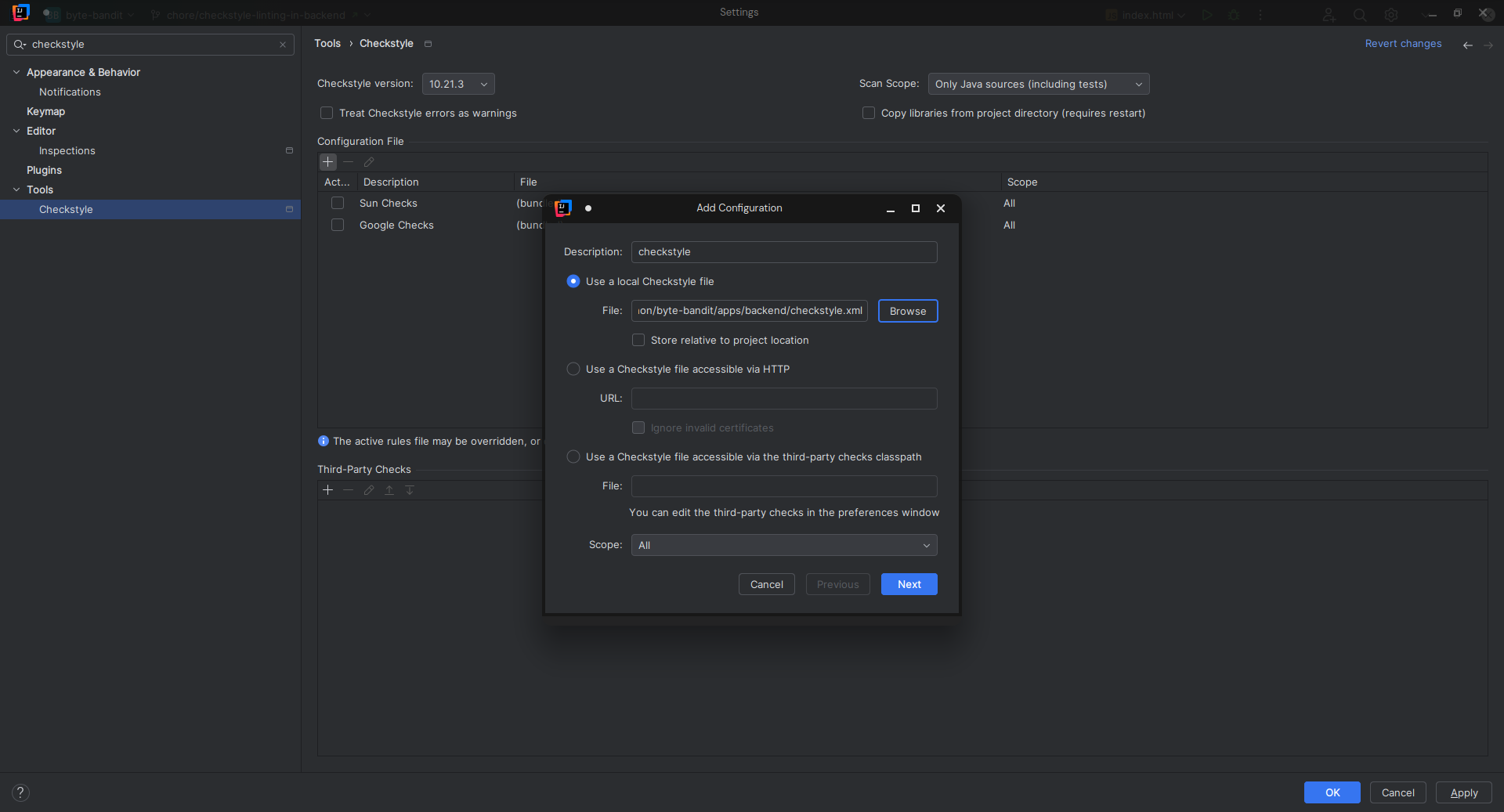

  4. Add a new configuration: Click + > Select checkstyle.xml from the backend folder. Give a name to the configuration( e.g. checkstyle). add-checkstyle-xml.png
  5. Set it as active.

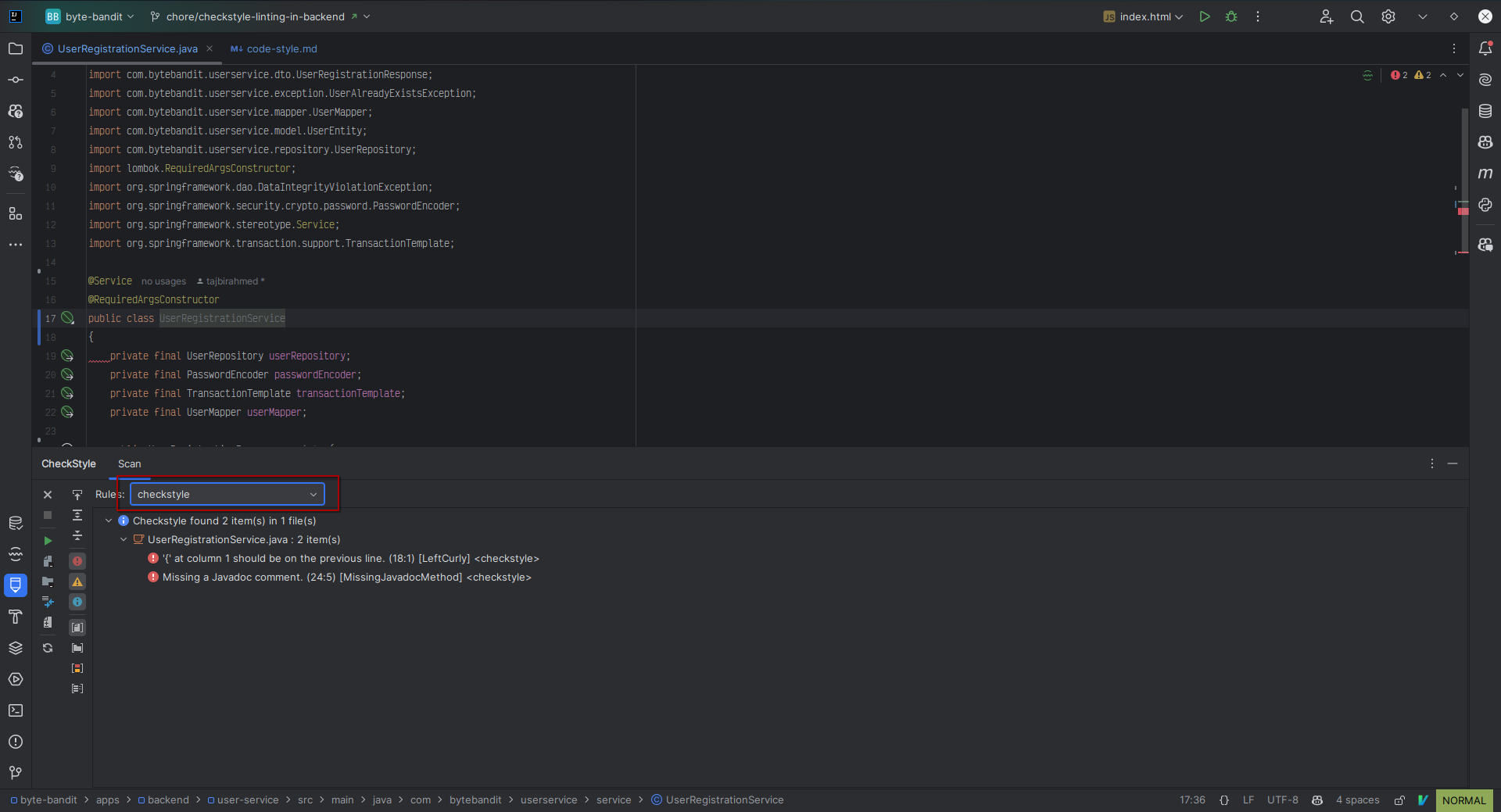

  6. In the toolbar window, click on the Checkstyle icon, and make sure the checkstyle is selected in the dropdown. checkstyle-idea-rule.png

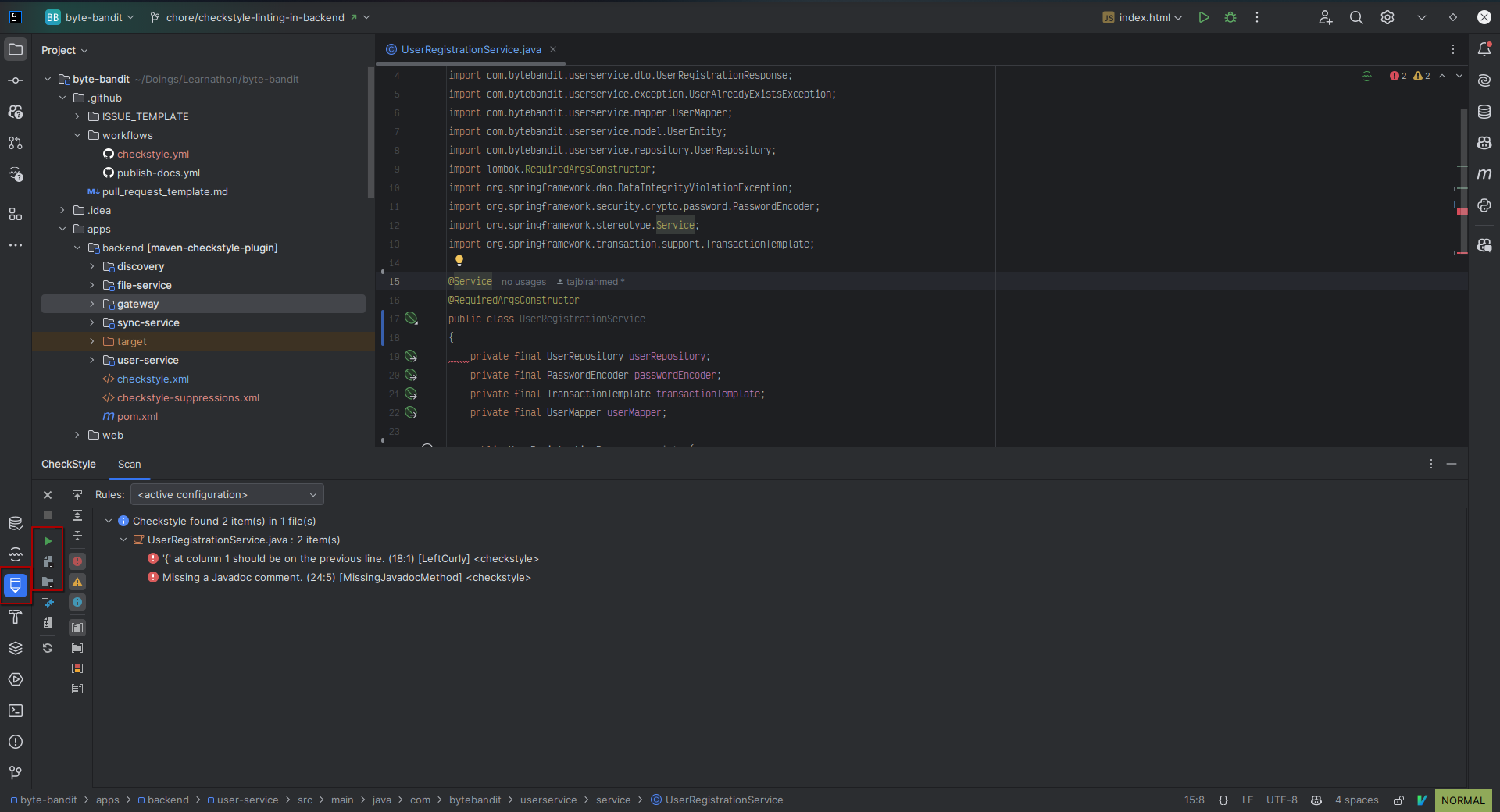

  7. Run Checkstyle Analysis: Then you can run checkstyle analysis by clicking on different scope options like Check Current file, Check Project, check Module, Check All Modified Files, etc. check_file.png

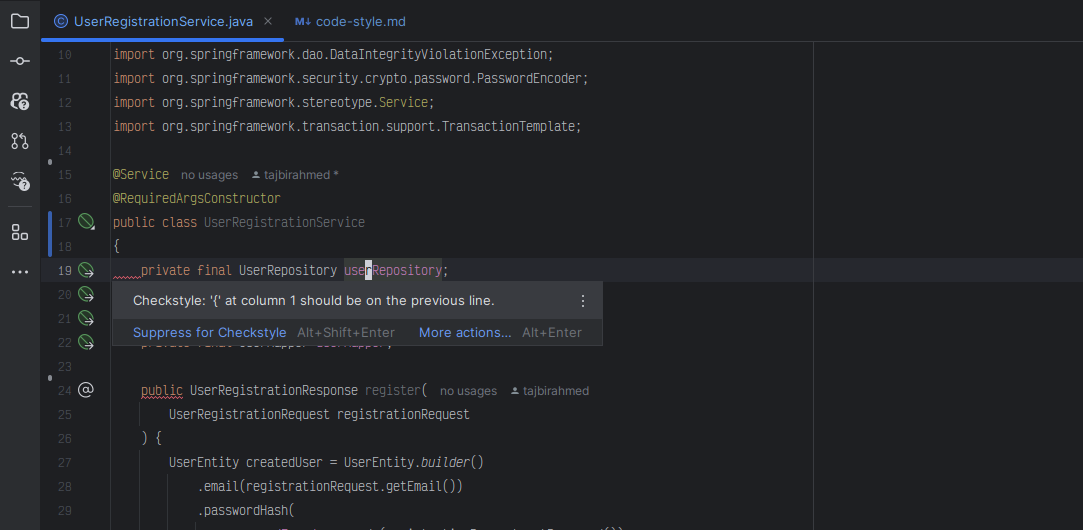

  8. Checkstyle will highlight any code that doesn't comply with the Checkstyle rules. checkstyle-error.png

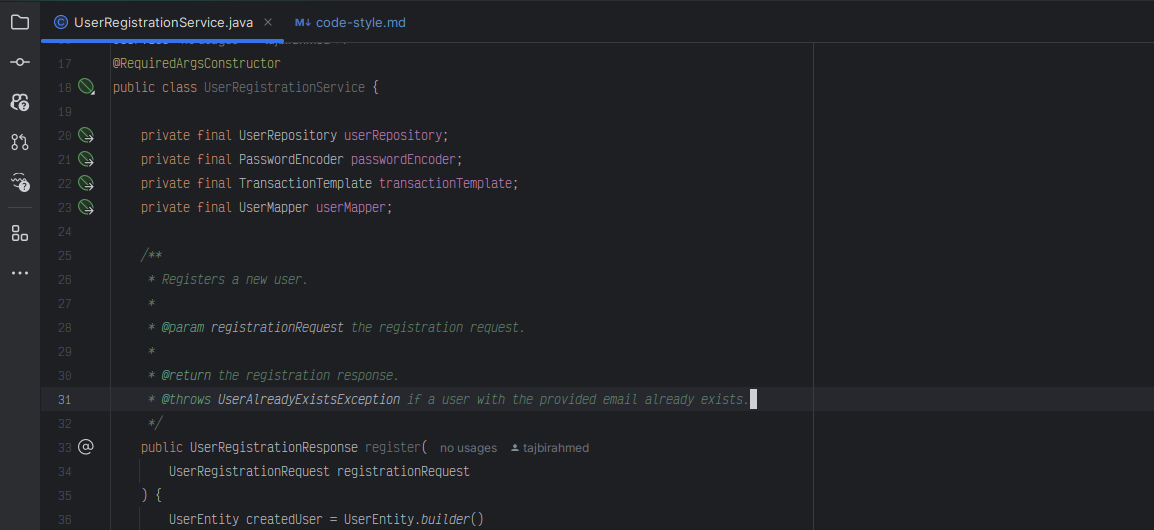

  9. Now you can resolve the issues by following the Checkstyle rules. checkstyle-fix.png

Setting Up Code Style

To make sure your intellij code style settings match the Checkstyle rules, you need to import the project-specific code style settings. Follow the below steps to import the code style settings:

  1. Go to Preferences > Editor > Code Style.

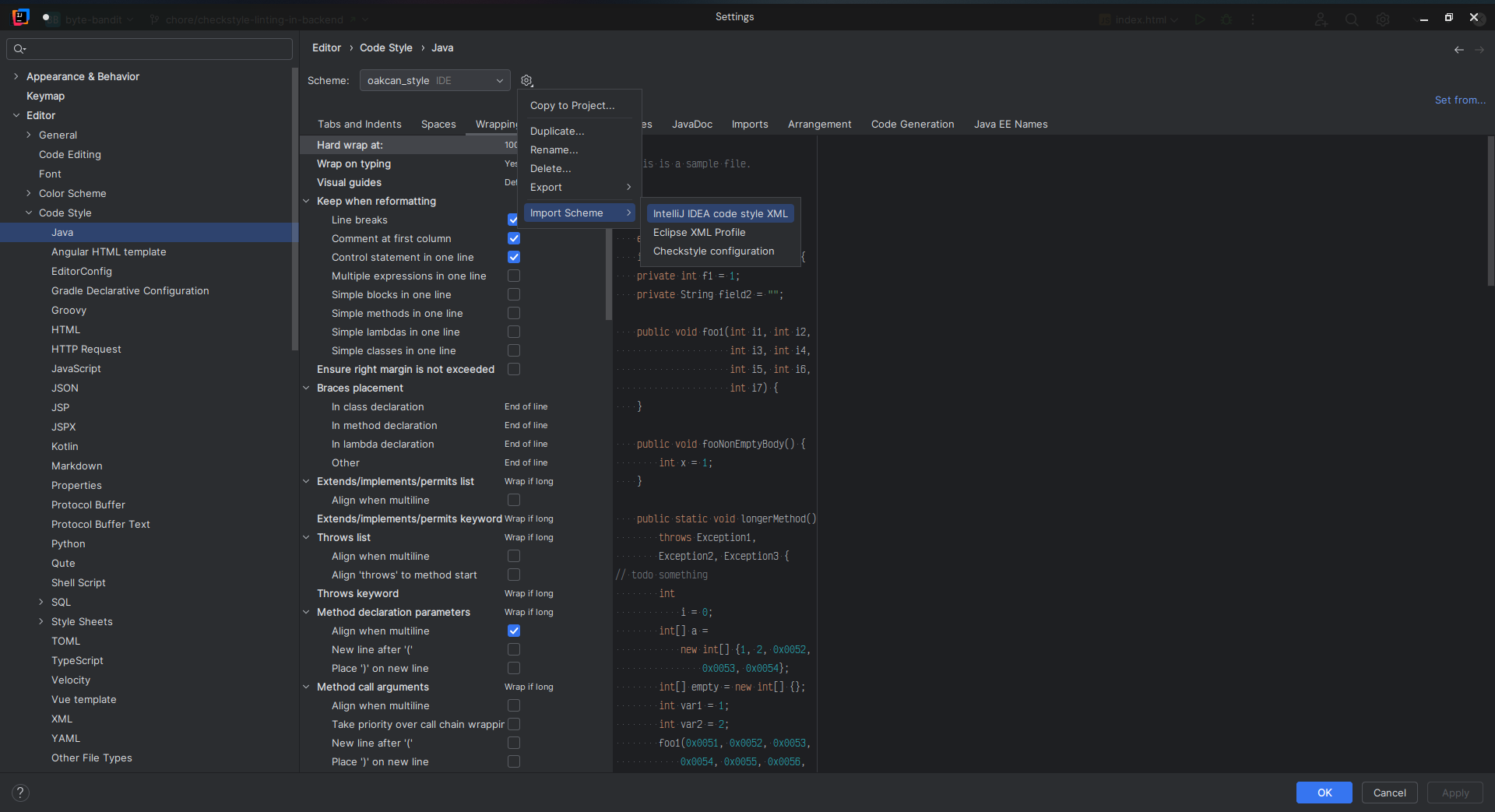

  2. Click on the gear icon and select Import Scheme > IntelliJ IDEA code style XML. import_intellij_code_style.png
  3. Select the oakcanCodeStyle.xml file from the .idea/codeStyles/ directory.
  4. Click on OK and Apply.
  5. Now your code style settings are updated to match the Checkstyle rules.

Now you can format your code using Cmd + Alt + L or Ctrl + Alt + L on Windows/Linux. This will format your code according to the Checkstyle rules.

Running Checkstyle from Command Line

To run Checkstyle from the command line, you need to install the maven-checkstyle-plugin. We've already added the plugin to the pom.xml file inside backend directory with proper configuration. You can run Checkstyle using the following command:

mvn checkstyle:check

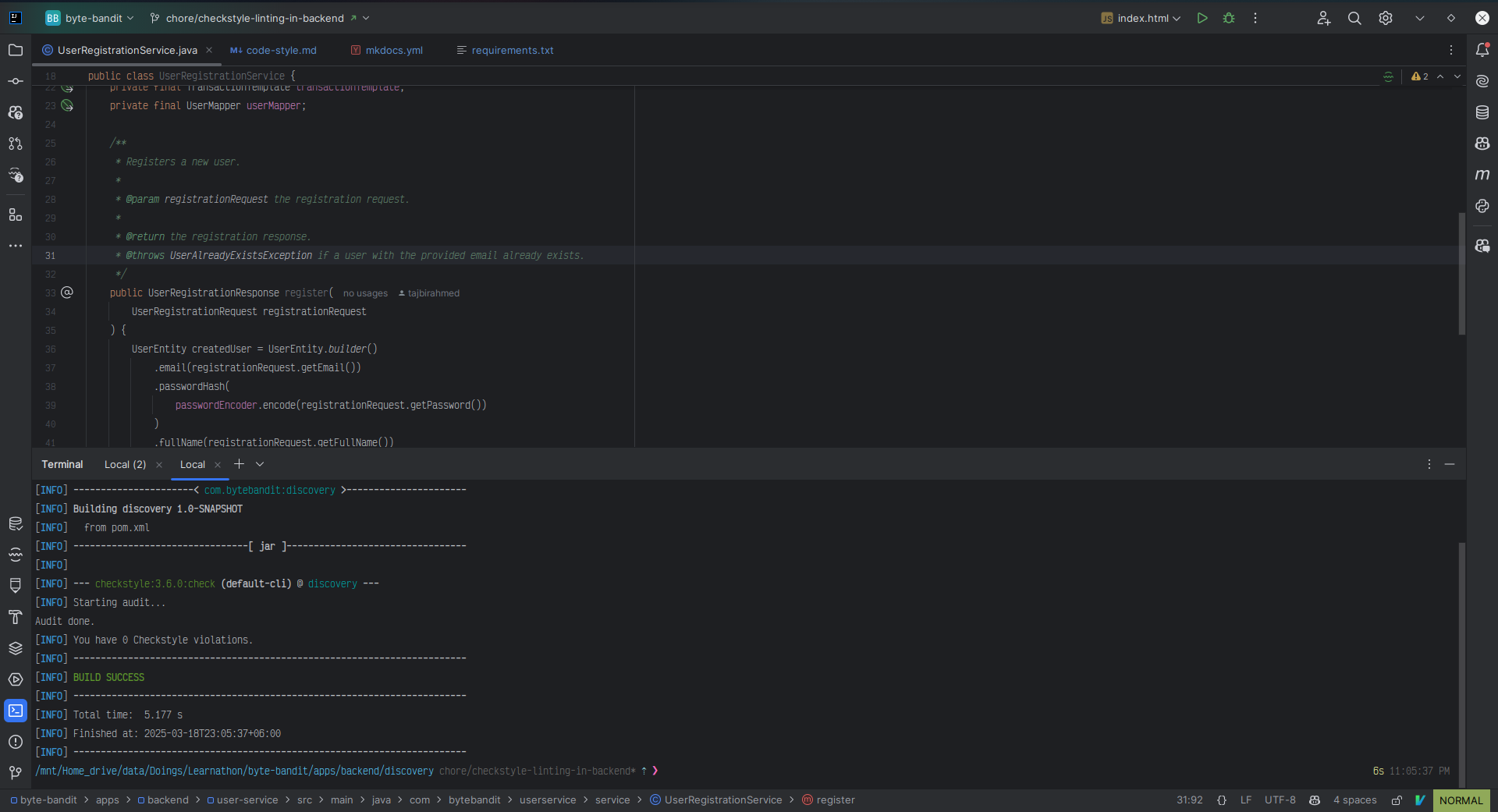

Checkstyle successfully run on the `discovery` service.

This will run Checkstyle on the current module and generate a report in the target directory. If you run this command from the backend module, it'll check every module in the backend module and generate a report for each module.

Note

Make sure your code complies with the Checkstyle rules before committing your changes. You can run Checkstyle from the command line or use the IntelliJ IDEA plugin to check your code. Remember, we'll reject any pull requests that do not comply with the Checkstyle rules as it helps maintain code quality and consistency.

SonarQube

We recommend to use SonarQube plugin locally to check the code quality during development. It will help you to identify the code smells, bugs, and security vulnerabilities in the code. We'll also use SonarCloud in the CI/CD pipeline to check the code quality of code changes so it's better to check the code quality locally before pushing the code.

Tip

If you get any unwanted errors from checkstyle, don't know how to fix them, write a comment in the code and push it. We will help you to fix it before merging the code.
